FilClean™ Gravity Indexing Filters

FilClean™ IDX is a flat bed coolant filter, using non-woven fabric for eliminating magnetic and non-magnetic particles from neat oil and emulsion.

Filtration levels can be determined by choice of fabric which range from 10 to 50 microns.

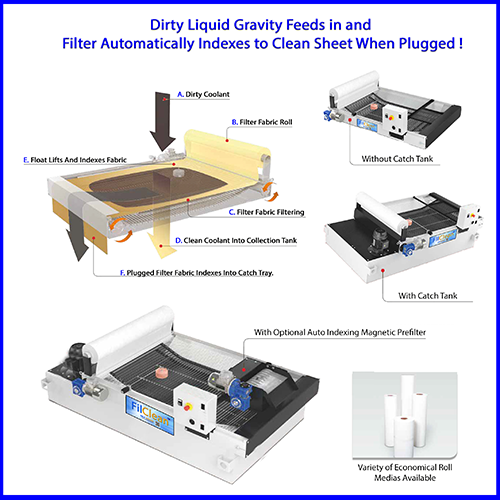

FilClean™ IDX automatically indexes the filter media as it plugs to a clean area of the filter roll and is a cost effective way to deal with many coolant contaminant challenges. Coolant drains out of the machine tool into the filter paper and then is pumped clean back to the machine tool via a supplied return pump.

*High Pressure Pump Amp draw is dependent on pump max pressure and will be determined at time of quote. State max pressure required back to machine tool.

Please download literature for complete specifications and dimensions.


Download Literature






FilClean™ IDX Carbon Steel Features

  • Flow Rates 13.2 to 106 gpm with water based coolant
  • Flow Rates 6.6to 53 gpm with oil coolant
  • Removable filter fabric roll
  • Filter media filters dirty coolant as gravity drains through.
  • Clean coolant collection tank

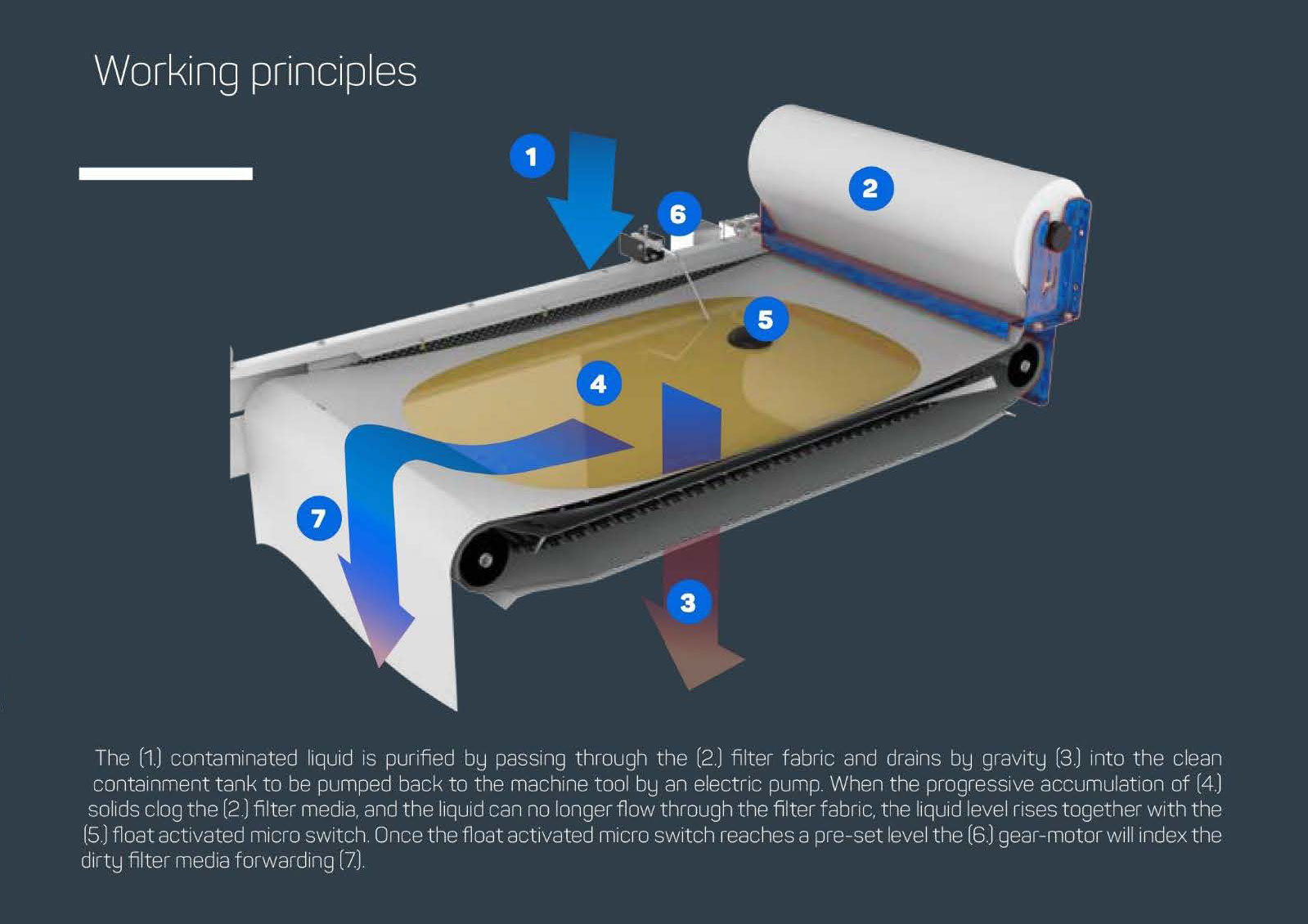

  • As filter paper plugs coolant backs up lifting a float which automatically causes filter paper to index to a clean spot.
  • Dirty filter paper automatically folds into a collection container for disposal

Roll Media Available

  • Rayon Polyester: 10, 15, 20, 25, 30 or 50 microns
  • Lengths: 100 yards or 200 yards
  • Contact MSC for special requirements

Most models In Stock - available for 24 hr shipment


Model
Tank Capacity
Max Filtering Rate
Max Filtering Rate
Max Coolant Return
Pump Pressure (PSIG)
Amp Draw*
Wt. (lbs)
(Gal)
(Water based Coolant)
(Neat oil GPM)
S
Standard PSIG
H
High Pressure PSIG
S
230V
3/60
S
460V
3/60
504413.26.62.9to 14001.1.55199
1007627.5131.5to 14001.2.6298
15011739.63191.5to 14001.91430
25017366334.4to 140042.3607
400277105523.6to 14005.82.9838

Request a Quote

FilClean™ IDXS Features


The FilClean IDXS gravity bed filter is constructed of durable stainless steel for use with corrosive applications such as waste water, washer filtration, electro-plating and many other speciality applications.

Request an IDXS (Stainless Steel) Quote
