Improve Machine Tool Efficiency

The MSC FilClean™ MS Mudsucker and Dome Filtration Systems are designed to add an extra layer of kidney loop filtration to coolant sumps and and improve machine tool ROI and operator experience through:

Reduced Coolant Sump Cleanings

Increased Coolant Life
Reduced Scrap
Improved Tool Life
Improved Parts Finishes
Reduced Grinding Wheel Dressings

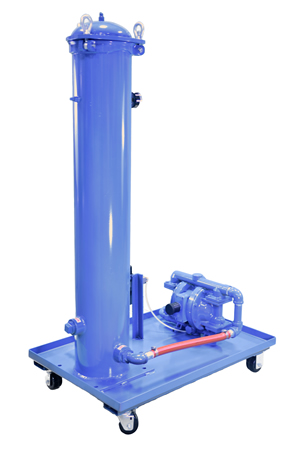

FilClean™ DM Dome Skid : The FilClean Dome skids remove fine grinding swarf from coolant sumps. They utilize a progressive cavity pump that can handle coolant with abrasive fine grinding swarf and a high capacity MSC Dome Cartridge Filter for removal.

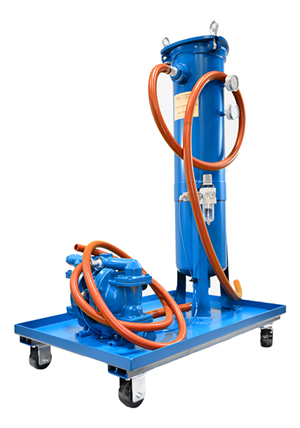

FilClean™ MS2 Mudsucker Skid : The FilClean MS2 Mudsucker skids remove large machining chips and other contaminant from coolant using a high capacity bag filter, air pump and an optional added cleanable MagFil™ magnet for prefiltration. I

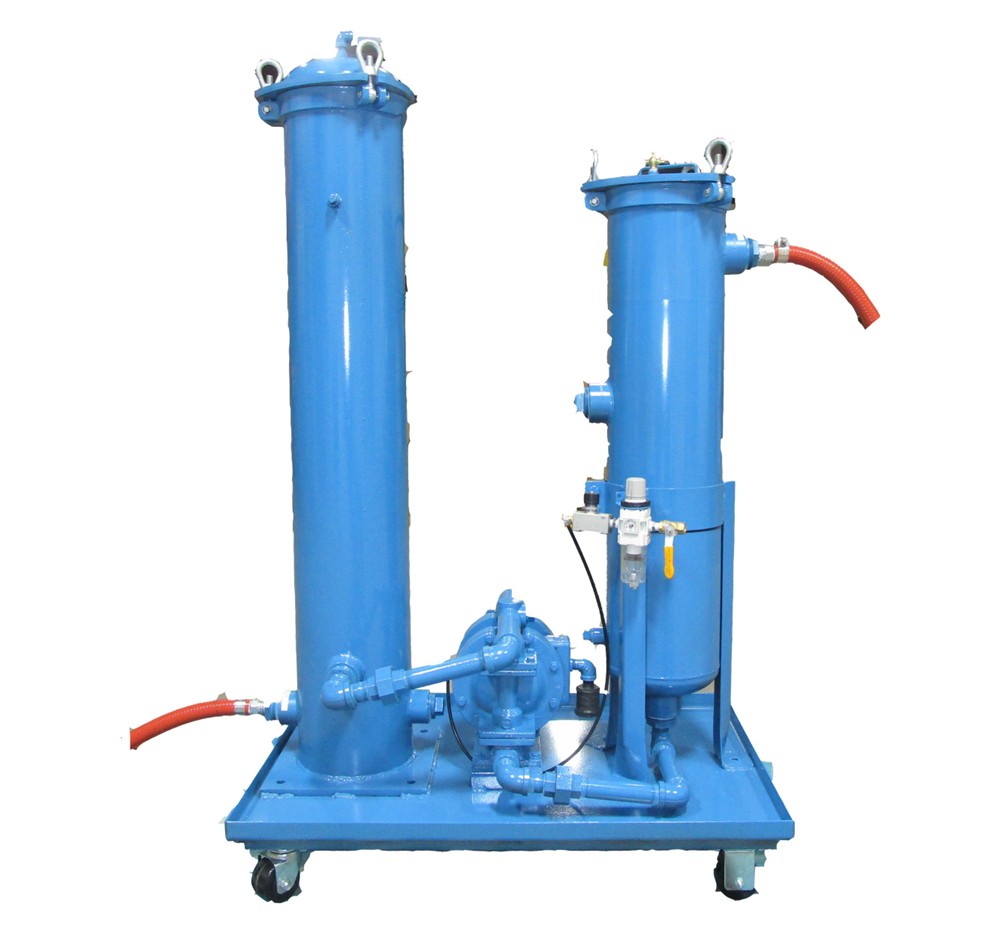

FilClean™ MSDMS Skid : The FilClean MSDMS skid uses both a bag filter to remove machining waste and a high capacity cartridge filter to remove grinding swarf. This skid can be used in shops that do both grinding and machining

Download Literature

Combination Skid

Grinding Applications

Machining Applications

MS (Mudsucker) Models

The FilClean™ MS (Mudsucker) filter cart is designed to perform exactly as the name entails. It is used to suck out settled contaminant and sludge from the bottom of dirty fluid sumps or spill containment berms. For further flexibility it can also be used as a portable kidney loop filtration system.

Typical Applications

Machine Tool Coolant Sumps
Aqueous Based Wash Solution Sumps
Straight Cutting Oil Sumps
Hydraulic and Lube Oil Containment Spill Berms

The FilClean™ MS is simple, durable and designed to filter high solid content fluids such as machine tool coolants and cutting oils. the FilClean™ MS will vacuum dirty fluids and contaminants directly from the bottom of fluid sumps and return them, cleaned, back to the machine or a waiting transfer tote or drum for use somewhere else.

The high quality air diaphragm pump is protected by the large filter housing which can be supplied with a variety of bag filter choices or even a magnet filter for prefiltration. The air diaphragm pump is not damaged if it is run fully dry which makes it an ideal choice for fluid sump cleaning.

The FilClean™ MS reduces the requirement for machine tool operators and maintenance personnel to rake or shovel chips or sludge from machine tool coolant and other fluid sumps!

Request a Quote

Full Name:

Company Name:

Phone Number:

Email Address:

Filter Housing:

Flow:

Filter Size 12:

Micron Ratings

Adders:

Message:

DMS (Dome) Models

The FilClean DMS can be equipped with the MSC PSK Progressive Cavity Pump, which is engineered to handle abrasive particulates like silica and other fine metallic swarf. It utilizes MSC’s high-capacity Dome filter cartridges to efficiently eliminate fine particulates. Available in flow rates from 6 to 15 GPM and compatible with voltages ranging from single-phase 110V to 480/3-phase, the FilClean DMS is designed for versatile application in various industrial settings and may even be supplied with a prefilter magnet which is even strong enough to recover carbide from saw sharpening applications.

All FilClean™ DMS Models Feature:

Painted Carbon Steel Construction
Easy to Open Swing Bolt Closures
Lid Service Filter Removal - Minimum Spillage
Low Fluid Hold Up
150 psig @ 350 F Design
Custom Paint Schemes Available for OEM's
Many Configurations Available

The MSC FilClean DMS (Dome) filter housings and elements are available in a variety of sizes, media types and micron ratings. They provide affordable high dirt loading, high efficiency filtration designed but not limited to the removal of contaminants from fluids such as:

Water Soluble Coolants
Grinding Oils
Cutting Oils
Hydraulic and Lube Oils
Quench Oils
Fuels
Solvents
Dielectric Oils
Glycol Based Heat Transfer Fluids

Request a Quote

Full Name:

Company Name:

Phone Number:

Email Address:

Filter Housing Size:

Number of Housings:

Fluid Pump Flow:

Service:

Select Mounting:

Select O-ring Material:

Message:

MSDMS Models

FilClean™MSDMS BEST OF BOTH WORLDS ONE COOLANT FILTER SKID FOR BOTH GRINDING AND MACHINING APPLICATIONS

The FilClean™ MSDMS filter cart is engineered for superior filtration performance, combining coarse pre-filtration with a durable bag filter and fine post-filtration with a high-capacity cartridge filter, all seamlessly integrated onto a single skid. This innovative design brings together the exceptional capabilities of MSC's MS2 Mudsucker and DMS Dome Cartridge Filter Carts, delivering efficient dual-stage filtration in one compact and portable solution.

SIMPLE, RELIABILE AND FLEXIBILE

The FilClean™ MSDMS is the ideal solution for machine shops aiming to maintain clean machine tool sumps while accommodating both machining and grinding applications. This versatile system streamline operations by enabling dual functionality on a single, compact skid, delivering efficiency and performance in one convenient package.
